How To Wire The FC-918E Electric Lock?

2017-05-07 19:14

Details of the problem:

Hi, I have bought the FCL-918E electric lock, how do you connect, can you provide a wiring diagram? Thanks.

Expert answer:

Thanks for your supoort! FC-918E Electric Lock The following picture you can do a reference:

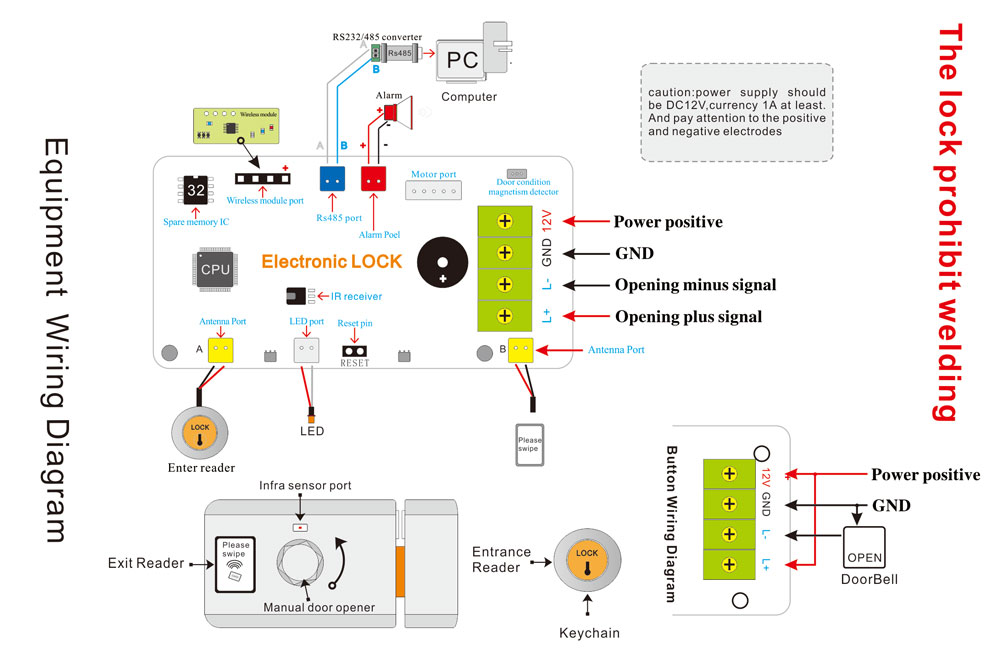

Electric Lock connection diagram

Can solve( 0 ) Can not be solved( 0 )
