Electric bolt lock, this series is made of stainless steel material of the lock tongue, which make the largest electricity mortise lock can withstand 800 kg to 2000 kg clash and not damaged, use DC12V operating voltage, power consumption is 100 mA.

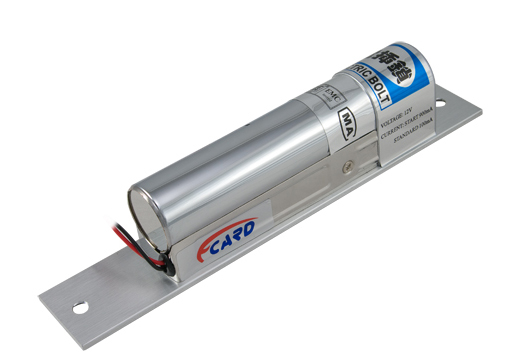

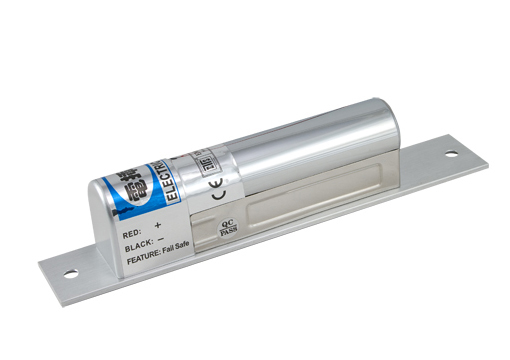

FCL-500 Electric Bolt Lock
Electric bolt lock is "FCARD ELECTRINIC" for the public security access control system with high quality electric locks, this kind od electric bolt lock is made of stainless steel material of the lock tongue, which make the largest electricity mortise lock can withstand 800 kg to 2000 kg clash and not damaged, use DC12V operating voltage, power consumption is 100 mA (starting moment 900 mA).
Electric bolt lock is compatible with access control,door phone,remote control system.Suitable for all types of wooden doors, glass doors, metal doors, metal doors, including framed doors,hollow framed doors and frameless doors.
Working voltage: DC12V+10%
Electric Heating: : low temperature
Working Temperature: -10 to 55℃
Induction Distance: within 10mm
Weight: 0.7KG
Safe Style: Power Off Unlocking
Humidity: 0-95%
Durable Design: Pass 500 thoudsand testing
Working Current: 950mA (Locked moment) 90mA (Normal)
Lock Tongue: stainless steel, bear 800KG pressure
Warranty: Anode lock series products, providing two years of quality assurance
Application: Wooden door,Glass door,Metal Door,Framed door,hollow frame door,frameless door

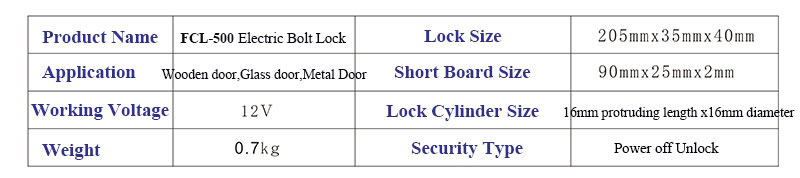

Product Size:
Features:
1. Electric bolt lock adopts integral aluminum alloy die-casting shell, it is safe and simple.
2. working voltage 12V, starting current 950mA, working current 150mA.
3. Power on locked, power off unlocked.
4. Electric bolt lock can be used with card reader, fingerprint machine and building intercom.
Functional characteristics:
1. High safety, outside interference after locked, damage prevention, more stable, more durable.
2. Electric bolt lock uses stainless steel cover piece.
3. With delay function, you can set the door lock delay time: 0s, 3s, 6s.
4. Stainless steel lock tongue, more firm, using point control magnetic force to open, closed automatic locked.
Delay Adjust:
Wiring Diagram:
Compatible with FCARD one card management system. Support: Access Control System, Offline Access Control System, Access Control & Time Attendance, Guard Tour,Canteen POS System, Water Controller, Elevator Access Control Board, Parking Lot System etc unified management,to realize one card management system with one card and one database.
