Electromagnetic Lock have the epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking control pcb board mount assembly leaves hands free for wiring and securing of mounting screws.

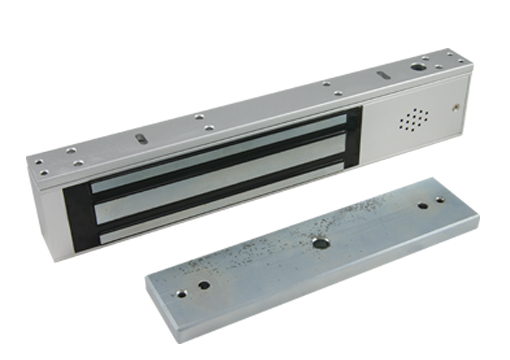

FCL-280KG Single Door Electromagnetic Lock
All Eeries Electromagnetic lock include one year warranty and are available in 350lbs, 600lbs,800lbs, and 1200lbs holding force. Compatible with any access control system, all series electromagnetic locks are adaptable to virtually any application utilizing Top Jamb or Glass Door mounting kits. The epoxy-less design provides a superior appearance with a plated or anodized finish on all sides. The interlocking control pcb board mount assembly leaves hands free for wiring and securing of mounting screws.
FCL-280KG Single Door Electromagnetic Lock
Technical Parameters:
Working Voltage: DC12V/24V +10%
Working Current: DC12V/480mA 24V/240mA
Humidity: 0-95%
Holding Force:280kg(600Lbs) direct pulling force
Working Temperature: -10 to 55℃
Durable Design: Pass 500,000 testing
Weight: 2kg
Lock: 250mmL x 42mmH x 25mmH
Iron Plate: 180mmL x 38mmH x 11mmH
Warranty: 3 years
Applicable: glass door, wooden door, fireproof door

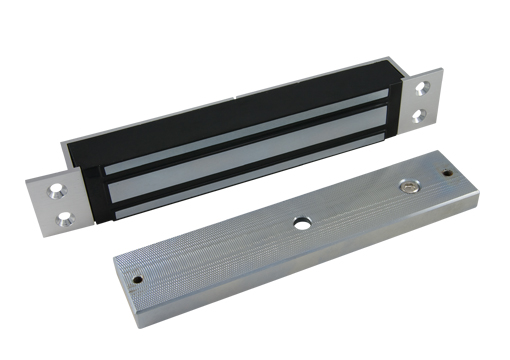

280MS Electromagnetic Lock With Mortise Mount
Technical Parameters:
Working Voltage: DC12V/24V +10%
Working Current: DC12V/480mA 24V/240mA
Humidity: 0-95%
Holding Force:280kg(600Lbs) direct pulling force
Working Temperature: -10 to 55℃
Durable Design: Pass 500,000 testing
Weight: 2kg
Lock: 231.6mmL x 41.6mmH x 24.5mmH
Iron Plate: 180mmL x 38mmH x 11mmH
Warranty: 3 years
Applicable: glass door, wooden door, fireproof door

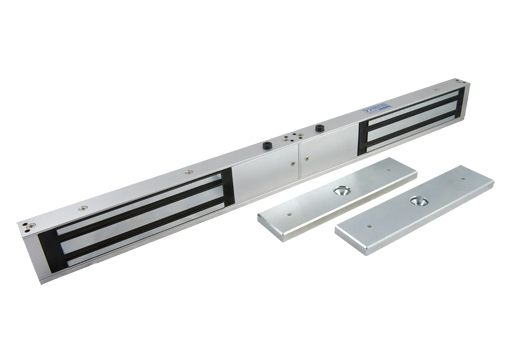

FCL-280KG Double Door Electromagnetic Lock
Technical Parameters:
Working Voltage: DC12V/24V +10%
Working Current: DC12V/480mAx2 24V/240mA
Humidity: 0-95%
Holding Force:280kg(600Lbs) direct pulling force
Working Temperature: -10 to 55℃
Durable Design: Pass 500,000 testing
Weight: 4kg
Lock: 500mmL x 42mmH x 25mmH
Iron Plate: 180mmL x 38mmH x 11mmH
Warranty: 3 years
Applicable: glass door, wooden door, fireproof door

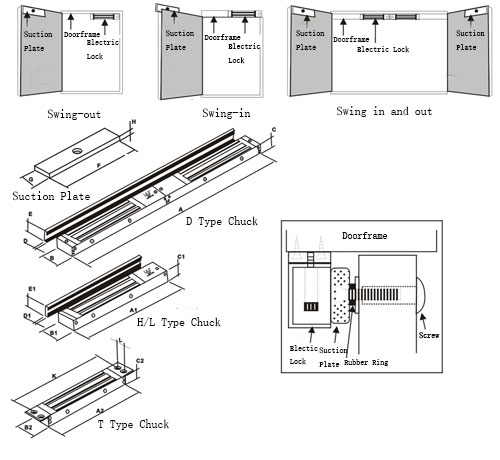

Installation Diagram:

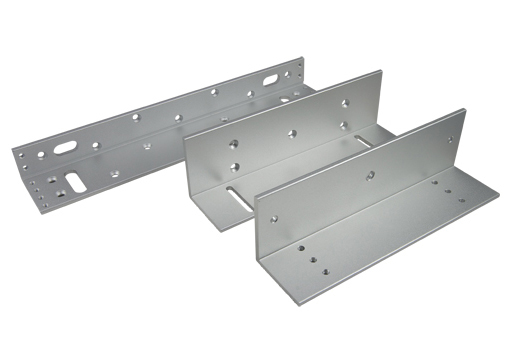

Bracket for the 180Kg/280Kg/350Kg/500Kg Series electromagnetic lock special design for out-swing narrow door frame door project to install the magnet, with 5 adjustable holes to suit different door frame.
280 L Bracket
Technical Parameters:
U ElectroMagnetic Bracket
Suitable For: 280 series ElectroMagnetic Lock
Weight:0.32Kg
Size: 250*50*30mm
280 ZL Bracket
Technical Parameters:
U ElectroMagnetic Bracket
Weight:0.32Kg
Suitable For: 280 series ElectroMagnetic Lock
Size: 168*50*30mm
280UL Bracket
Technical Parameters:
U ElectroMagnetic Bracket
Weight:0.42Kg
Size: 180*43*28mm
Suitable For: 280 series ElectroMagnetic Lock
