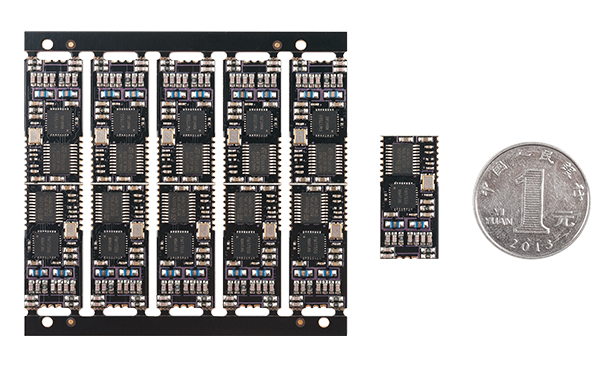

FC-532M card reading module is a high-performance card reading module (read-write module) developed by Guangzhou Fcard Electronics Co., Ltd. It can support Mifare card, CPU card, NFC card reading and writing, support reading Mifare card, CPU card, NFC card, NFC mobile phone, UnionPay card, second-generation third-generation identification card, Yangchengtong...all in one. It can output TTL232, RS485, WG26, WG34, WG66, support buzzer control, support two sets of LED control, support 3.3V working voltage, support AD algorithm keyboard. It can be used as the core component of access control, time attendance, consumption, and reader.

Product Features:

1. Support external transceiver antenna.

2. The farthest acting distance reaches 100mm.

3. Single power supply, low power consumption design.

4. Support Wiegand (Wiegand26, 34, 66), TTL level, RS485.

5. Support buzzer and LED controller output.

6. Support software configuration functions.

7. Support to identify Mifare card sector, verify Mifare card sector password and specific content.

8. Support custom card number.

9. Support AD algorithm keyboard.

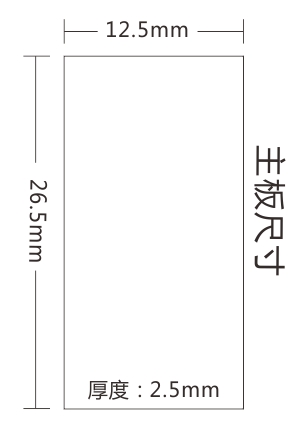

Module Size Chart:

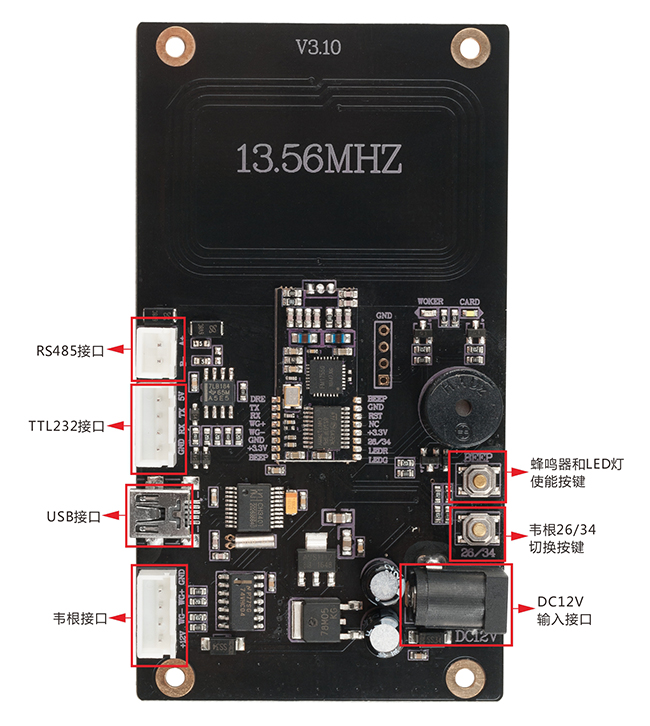

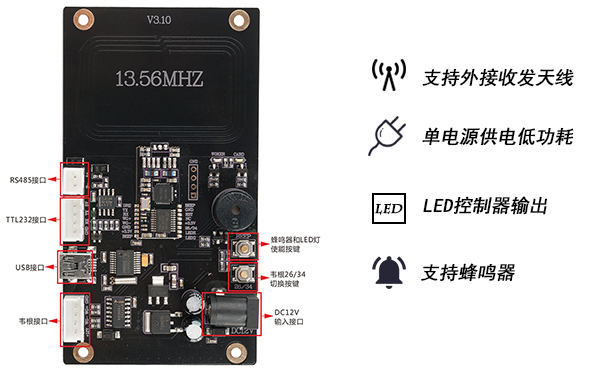

Joint Development Board:

The joint development board is used to jointly debug the FC-532M, use this board to simulate and debug various functions of FC-532M card reading module, which is convenient to use various functions. This joint development board is provided by our company free of charge to customers who purchase FC-532M module. Please apply for it with our sales staff when you first buy it.

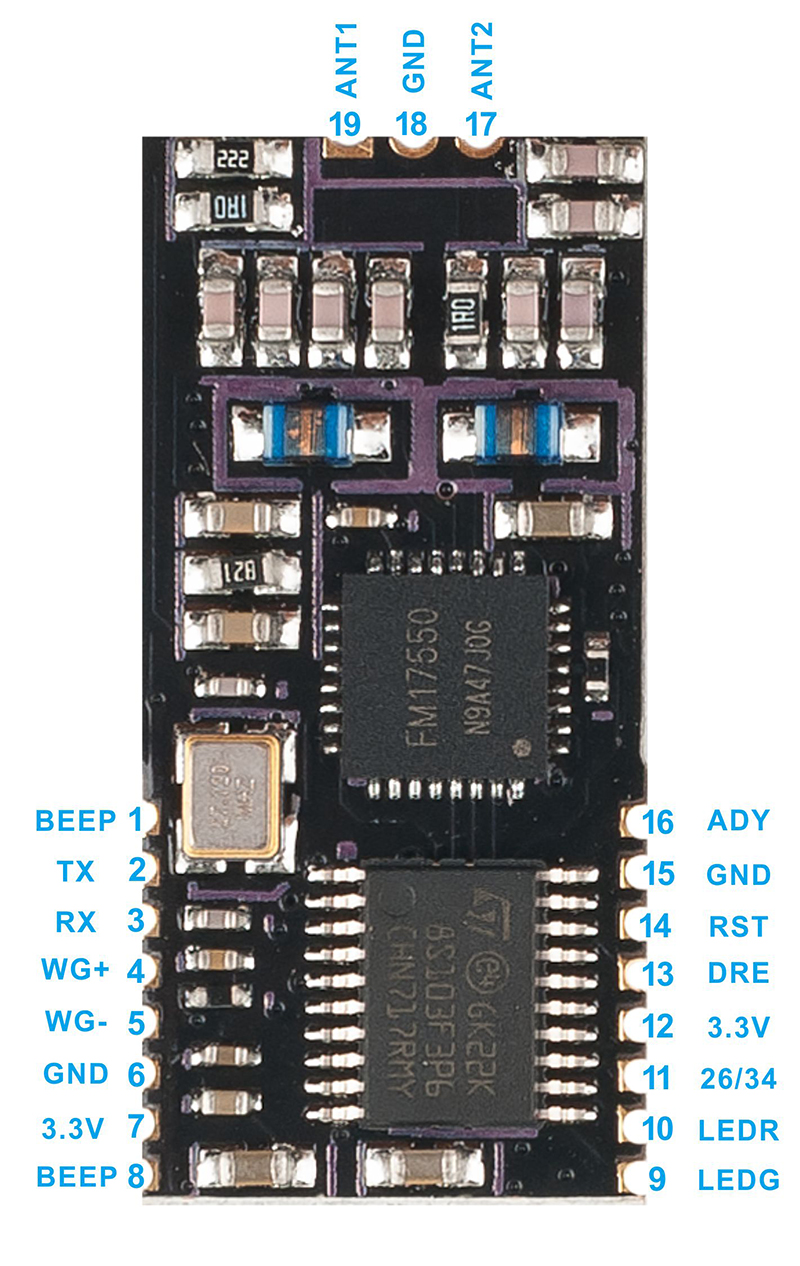

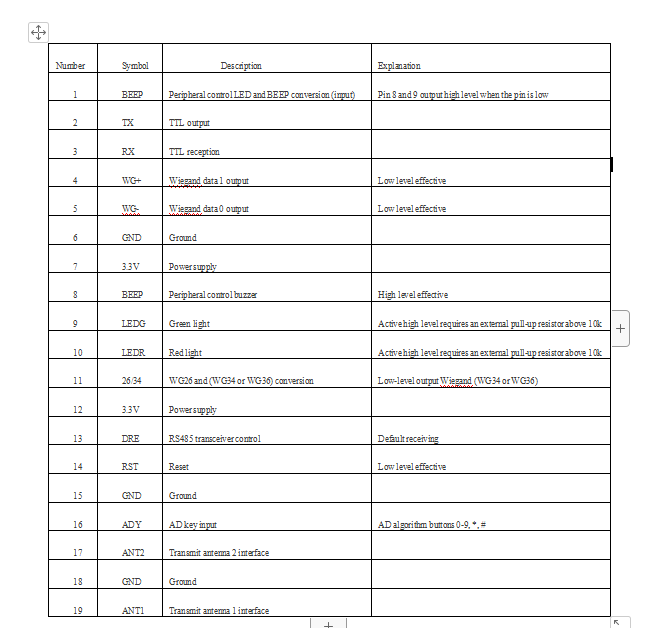

Wiring Instructions:

Instructions and tools:

We have provided FC-532M with detailed instructions and various development files (debugging tools, PCB diagrams, joint development board schematic diagrams and various pictures). Please click to download
