Hello, I purchased your company’s MC-5824A two doors access control board, switching power supply and two bolt locks, previously only the standard access control power supply was connected, now it is connected to the switching power supply, how to connect, please provide the connection diagram, thank you

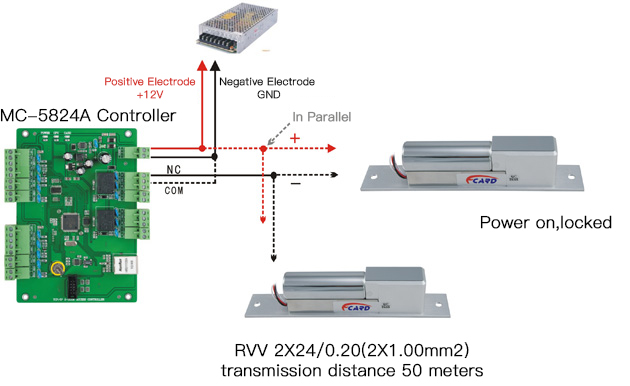

Hello, thank you for purchasing our company's access control products, you can refer to the following pictures to connect:

If you encounter something that you don’t understand when connecting, please add my QQ, and I will give you guidance: QQ 2880150932
