Hello, How to Install the FC-9088 Fingerprint Access Controller?

2017-04-11 11:28

Details of the problem:

Hello, how to install the FC-9088 fingerprint access controller?

Expert answer:

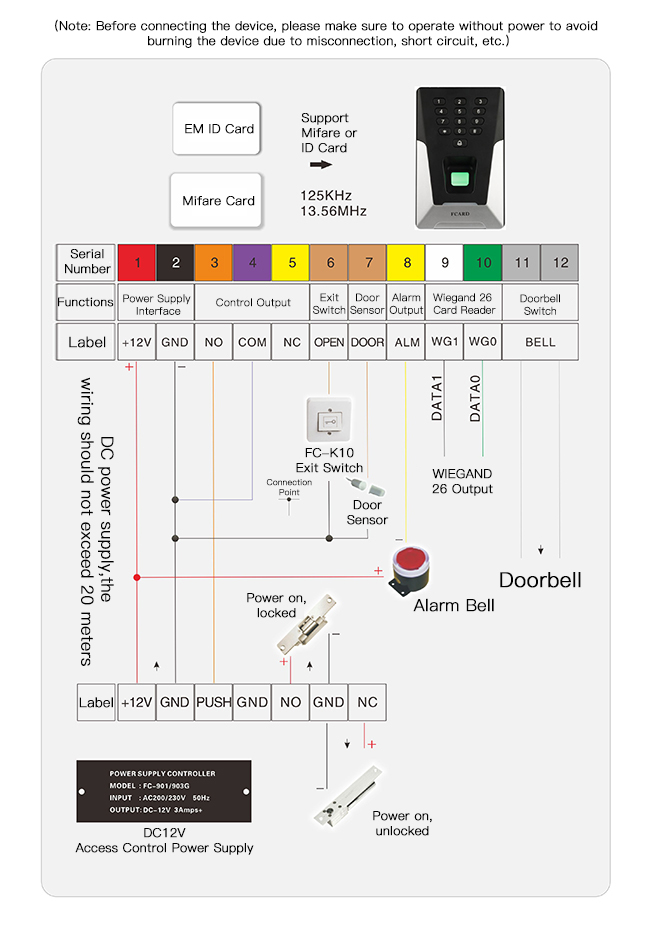

Hello, thank you for purchasing our company's fingerprint access controller, you can refer to the following pictures to connect:


If you still don’t understand, you can consult us at any time and we will answer you in time. If want to know more about FC-9088 fingerprint access control product parameters click here: Fingerprint access control

Can solve( 0 ) Can not be solved( 0 )
