I want to connect the FC-8300T face recognition access controller to the sliding door, please provide the wiring diagram

2020-02-20 09:37

Details of the problem:

I want to connect the FC-8300T face recognition access controller to the sliding door, please provide the wiring diagram, thank you.

Expert answer:

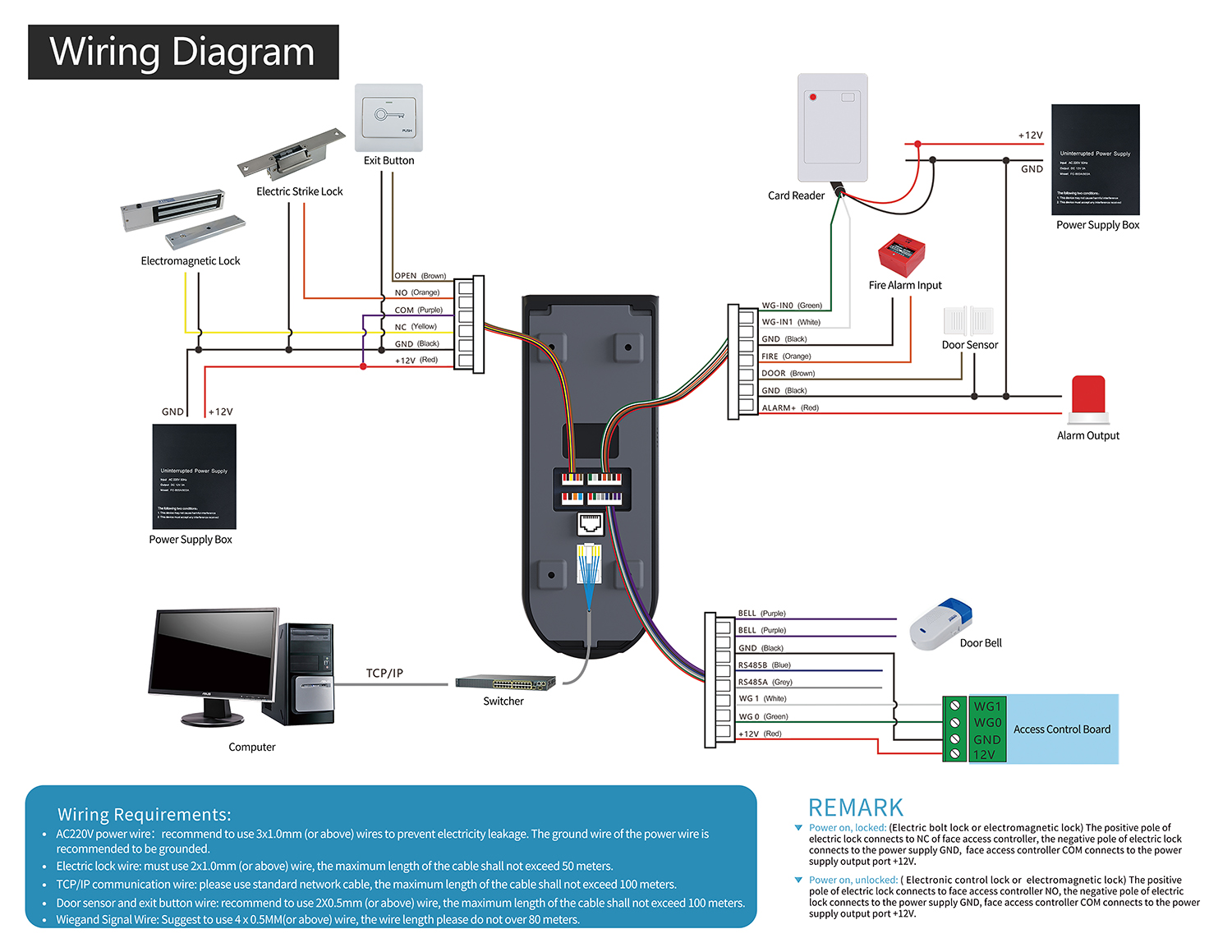

Hello, welcome to use our products, thank you for your support. The following is the wiring diagram of the FC-8300T face recognition access controller:

Can solve( 0 ) Can not be solved( 0 )
