FC-196 Elevator metal RFID card reader is suitable for access control, time attendance, charge, anti-theft and other radio frequency identification applications.
FC-196 Elevator Metal RFID Card Reader is composed of ID type and Mifare type. The card reader uses advanced radio frequency receiving circuit design and embedded microcontroller, combined with efficient decoding algorithms, to complete the reading of 64bits Read-Only EM4100 compatible ID cards. FC-196 elevator metal RFID card reader Mifare type adopts 13.56MHz reading frequency, combined with encryption algorithm to support the reading of the zero sector data of the MIFARE format Mifare card, and the card number is obtained after calculation and decoding. FC-193 metal card reader is wrong the reading rate is less than 0.01%. Support keyboard, support Wiegand output keyboard commands, this series of products have the characteristics of high receiving sensitivity, low working current, single DC power supply, low price, high performance and so on. FC-196 elevator metal RFID card reader radio frequency card reader is suitable for various radio frequency identification applications such as access control, time attendance, charging, and anti-theft.
FC-196 Elevator Metal RFID Card Reader misreading rate is less than 0.01%. Support keyboard, WIEGAND output keyboard command, this products receive high sensitivity, small working current, low price, high performance etc. FC-196 Elevator Metal Card Reader is suitable for access control, time attendance, charge, anti-theft and other radio frequency identification applications.
Working Mode: WG 26/34
Reading Speed: < 0.2s
Reading Interval: < 0.5s
Reading Distance: 0-60mm (ID card) 0-50mm (Mifare card)
Reading Type: ID card/Mifare card
Reading Frequency: 125KHz/13.56Mhz
Working Temperature: -0℃ to +65℃
Working Humidity: 10-90%
Voltage: DC10.8-13.8V -> Standard DC 12V
Build in LED: Three groups LED
Build in Speaker: Buzzer
Working Current: 120-180Ma
Networking: WG 26/34 bits standard format data output
Communication Distance: 100m
Transfer Way: Real time
Shell Material: zinc alloy + acrylic board

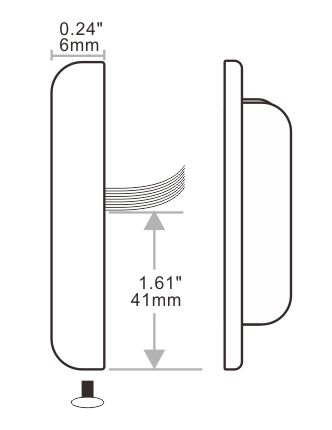

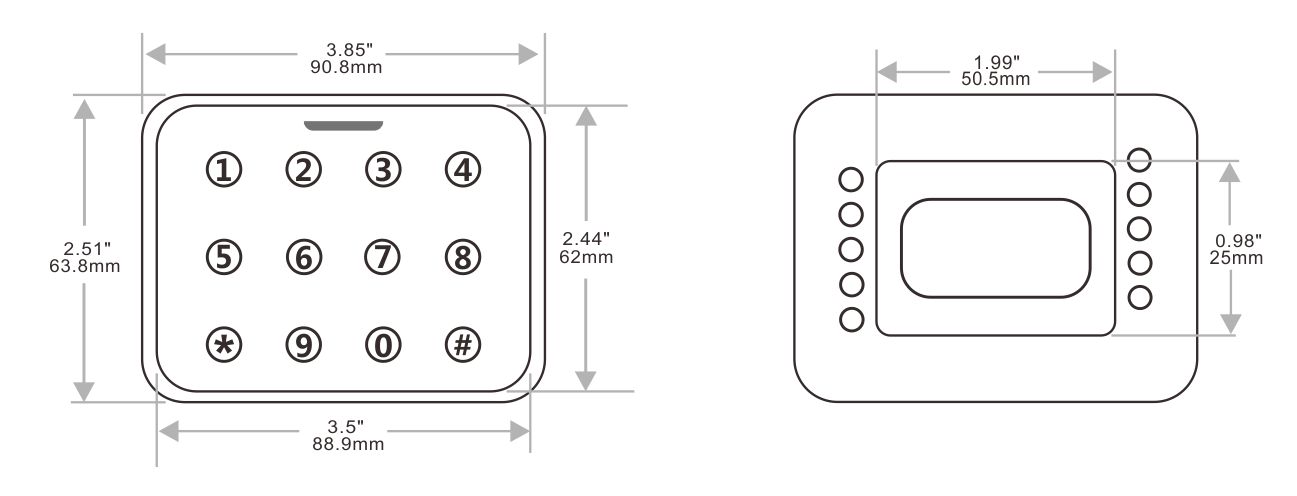

Product Size:
Instruction:
When the card close the card reader, the reader red light will change into green light, flash 1s then into red light, buzzer sounds once time means sending data, same ID card, if reading interval shorter than 500ms between two times reading, the second times reading is invalid. After reading, if the card still in the RF area it will not do any response. Different card separately into RF area, it will continuously to read card and output data.

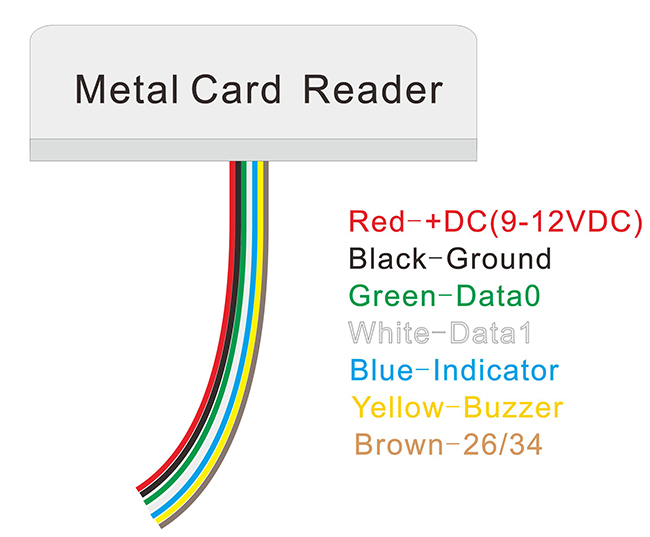

Wiring:
FC-196 Elevator Metal RFID card reader support WG26/34 format output, supply LED control and BEEP control line.
+12V: DC10.8-13.8V -> Standard DC12V
GND: Ground
DO: Data 0
D1: Data 1
LED:
BUZ: Buzzer
FOR: WG26/34
Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
