Suitable for Parking lot system、access control system、communication system、 logistics identification system、Statistics of mine entry and exit.

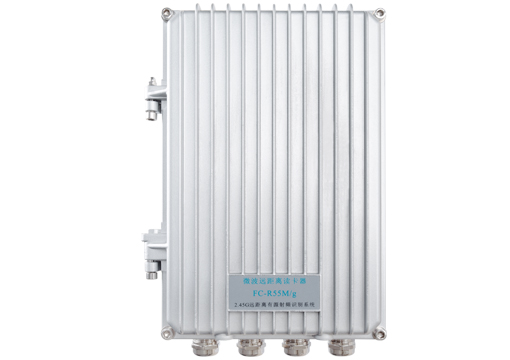

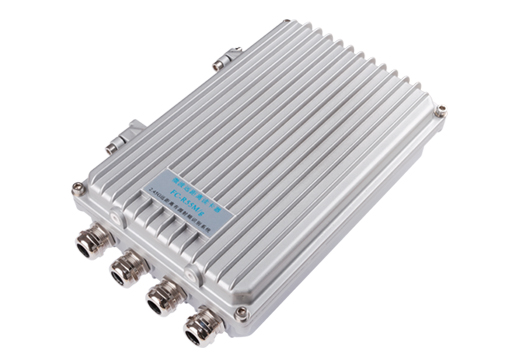

FC-R55M is a 2.45G bluetooth long range card reader use for school、logistics、parking lot system. FC-R55M support one group Wiegand26、34 output and one group RS485 data output, can support mobile and Unicom, when students enter/exit school will auto send message to inform parents. The reading distance from 0 to 180m can be adjusted, support reading 1,000 pcs cards once time, support directional antenna and omnidirectional antenna. Also support ground sensor reading card.
Suitable: Parking lot system、access control system、communication system、 logistics identification system、Statistics of mine entry and exit.
If have big order can customize various active card、can modify the communication protocol for demand.
Working Voltage: DC12V
Working Current: <500mA
Temperature: -25℃ to 75℃
Humidity: 10%-90%
Frequency: 2.4GHz
Working Mode: Access controller、Card reader
Reading Capacity: 1,000pcs/s (card reader cmode)、20pcs/s (access controller mode),Cann
does not decelerate card in 60 speed.
Reading Speed: 0.5s-60s
Communication Interval:0.5s-60s
Reading Distance: Close(0-8m)、Middle(0-20m)、far(0-120m) three modes are optional
Cards Capacity
Card Capacity: 55,000 groups
Reading Record: 220,000
Identification Distance: 0-180m adjustable
Once time reading: 1,000 cards
Reading Type: FC-L2.4 compatible format bluetooth card
Card's Battery: 2 years(Can be changed)
Communication Way: RS485: 1 group、TCP/IP: 1 group、 Wiegand 26/34 reader: 2 groups
Data Rate: 19200bps(RS485) 、10/100M (TCP/IP)
Relay: 1 access relay output、1 alarm relay output
Ground Control: Support
Offline operation: Support
Size: 300mmL×200mmW×90mmH
Card's battery life: 2 years (card sending cycle is 0.5 seconds) to 10 years (card sending cycle is 30 seconds)
Advantages:
FC-R55M series long range card reader has many communication port, it not only support RS232、RS485、WIEGAND26/34, at the same time, build in Ethernet,convenience to transfer, and have TCP/IP communication way to meet requirement (such as mine personnel positioning). FC-R55M long range reader designed with anti-interference and lightning protection, which can be used for the general living environment and meet the requirements of industrial environment,long range card reader can read various electronic labels, fully meet the customer's requirements. There is no need to open the shell, can adjust the distance directly by issuing commands. The card reader is powered by 9 to 12V DC,stable performance, reliable operation,strong signal transmission capability and long life about 15 years.FC-R55M long range reader has leading technology, whole industrial design and superior performance make it has the outstanding competitive advantage of the field and create a new value to customers,reader components mainly have: wireless receiving unit, data processing module, DC power supply、antenna.
Product application:
Hands free access control in parking lot system;
Tunnel safety management system;
Personnel positioning management system of underground coal mine;
Driving test system;
Electronic license plate automatic identification system for motor vehicle;
Highway ETC electronic toll collection system;
Automatic management system of bus station;
Home school students school safety message system;
Importing meeting and activity staff's meeting reporting system;
City pet tracking and management;
Wildlife tracking and management;
Zoo management;
Inspection of warehouse power equipment;
Burning line、transformer equipment Intelligent maintenance
High value-added products tracking;
Process management in production line;
Storage, pallets and other containers'tracking and management;
Container transportation in sea, water, road and rail.

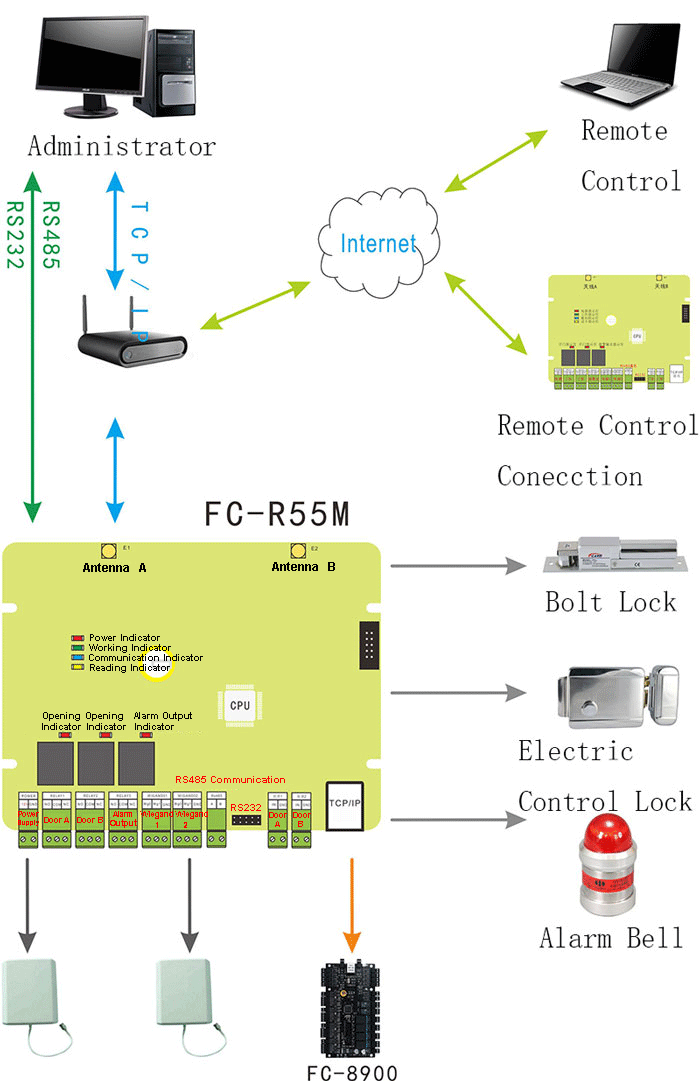

Product Structure:
