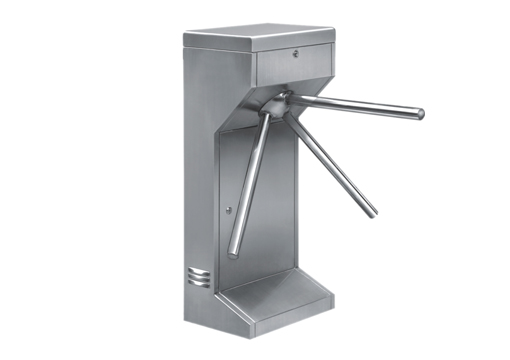

The whole product shape of the tripod turnstile is made of imported stainless steel board, which is beautiful in appearance, rust-proof and durable, and can resist external damage. The channel formed by the rectangular case of the tripod turnstile and the passage turnstile rod can provide an orderly and civilized way for entering and exiting personnel to prevent illegal entry and exit, in an emergency, the tripod turnstile can quickly control the falling or closing of the pole to organize the evacuation of personnel.

The tripod turnstile is VG1 type, it is a channel turnstile developed and produced by Fcard Electronics, the turnstile is made of imported stainless steel board, it is well debugged, easy to use and anti-collision, it adopts three operating modes in each direction, make it accessible to the turnstile suitable for use in a variety of places. FCT series channel turnstile are channel access management device developed and designed by Fcard Electronics for many years for park attractions, conference and exhibition centers, office buildings, factories, schools, communities, etc. The FCT system channel turnstile have a stainless steel shell with a frame structure. Driven by photoelectric induction and stepping motor, it supports multiple access methods such as free channel two-way passage, locking, computer remote control, and authorized access control. Support proximity card, fingerprint, barcode or timed turnstile opening to pass.

Technical Parameters:

Tripod Turnstile Structure: frame structure, stainless steel / plastic sprayed shell.

Housing: 1.0-1.2MM thickness.

Swing: one way, two way (optional).

Movement Drive Mode: AC24 Japan imported solenoid valve.

Failure Measures: manual rod fall.

Composed: Turning movement, stainless steel box, turnstile driver board, power supply.

Enter/Exit Way:

1. Free passage.

2. Locking.

3. Remote control by computer.

4. Authorized to enter/exit.

5. Manual.

Features:

1. Advanced design,exquisite workmanship, exquisite materials, reliable quality.

2. One-way or bidirectional passage.

3. Each direction can use three kinds of operation mode.

4. Person pass speed 25 users/ min (normal) 35 users / minute (fast).

5. Stainless steel appearance, luxurious and beautiful.

Connection of turnstile and control device:

Tripod turnstile is randomly equipped with a drive circuit (Build in one group DC5V power supplies, one group DC24V power supplies and a drive circuit board); LED indicator board; one user manual. The driving circuit board is a bridge between the control device and the turnstile, from the controller (access control, attendance, POS, ticketing selling etc) relay output select one group normally opened output, connecting according to the “Wiring Diagram”.

The functional characteristics of the tripod turnstile: (some functions require additional device)

Automatic reset function: if the card fails to pass within the specified time after the card is swiped, the tripod turnstile will be locked back and locked.

Mechanical anti-pinch function: automatic mechanical anti-pinch when the gate is running, more reliable and safer.

Entry alarm function: When a pedestrian enters the passage without swiping his card, the device will alert the pedestrian to swipe his card.

Anti-tailing function: when a person swipes the card, the person behind does not swipe the card tail to alarm at any time.

Multiple control functions: external buttons, remote controls, barcode instruments, Mifare or ID and other reading and writing device.

Remote control function: 485 communication interface can be customized, and the tripod turnstile can be controlled through the computer card software.

Anti-collision function: When the turnstile is impacted by external force in the closed state, you can choose the function that the turnstile cannot be opened after the impact or the automatic return function after the turnstile is opened after the impact.

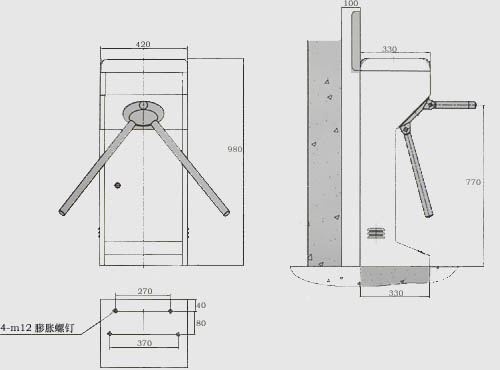

Installation:

Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
