Wiring Diagram of MC-5824 Link Fire Alarm
2016-11-09 15:00
Details of the problem:
Hello, i have bought a MC-5824 access control board has fire alarm function, however, i don’t know how to setting, Can you provide me a wiring diagram or user manual? Thanks.
Expert answer:

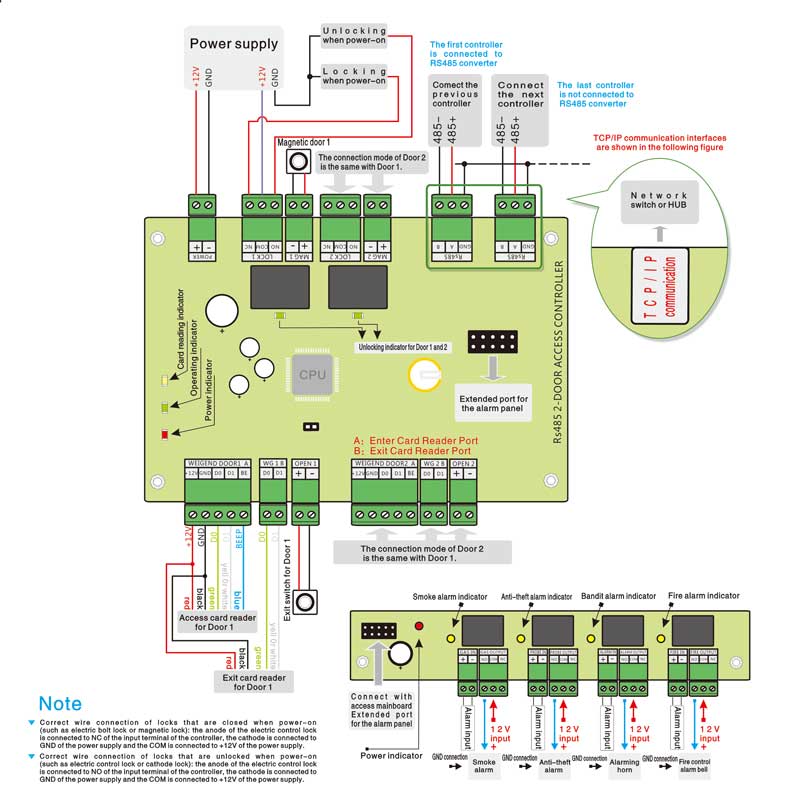

Thank you for your purchased. The wiring diagram shown as below:
