How To Connect The Circuit Of Reader?

2016-11-10 11:45

Details of the problem:

Hello, we have bought the FC-8810 from your agency, however we want to use the original reader, the reader model is HID6005B, how to wiring?

Expert answer:

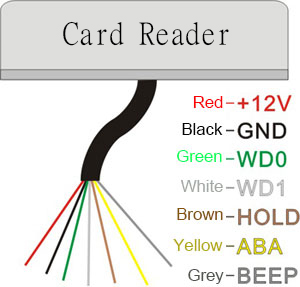

Thanks for your purchased. HID6005B and FC-8810wiring diagram shown as below:

Circuit Of Reader

Can solve( 0 ) Can not be solved( 0 )
