The MC-203 electric door lock is a highly integrated door lock product developed by FCARD for rental houses, residential quarters, school dormitories, etc. The internal dual-reading circuit can control the entry and exit of the card, and the card can generate records, which can be used for data query. The built-in anti-aperture alarm module can effectively protect your safety. It supports multiple door opening methods such as key opening, card reading, wireless remote control and software control. The door opening timeout reminder can be set. If the door has been opened for a long time and has not been closed properly, the electric lock will sound a reminder to remind the door to close. The built-in building intercom interface can support the linkage work with all brand building intercom hosts on the market.

MC-203 electric door lock, using TTL232 or RS485 communication networking, can communicate with the computer in real time, through the computer can effectively set the time setting, alarm setting, card data, card expiration time of the MC-203 electric door lock, you can open that door, add cards, delete cards, record query, remote open the door, add wireless remote control, modify the administrator password, etc., to set it. You can also use the accompanying infrared remote control to perform the above function setting operations on the MC-203 electric door lock.

The MC-203 electric door lock is controlled by the latest professional version of FCARD, which can support a variety of card adding methods: card issuing by entering card number, card reading, card issuing by entering self-number, card issuing by mother card, etc. It can also support a wireless remote control as the key to open the door to realize the remote open the door. MC-203 eectric door lock supports the use of mother card issuance. After adding a mother card, the card issuance function can be started by reading the mother card. When the mother card is read, the card that needs to be added can be read at this time, and the read card will be automatically Add storage. Using a new data backup module, the opening data in the lock can be backed up or restored through operation to ensure data security.

MC-203 electric door lock with the latest time access level management function, supports time authority management on the card used by someone or some people, and can effectively set the expiration time of the card. If the card expires, the card cannot be opened automatically. The use period can be extended again later. At the same time, the MC-203 electric door lock also supports time-of-day door opening management. You can set the card used by someone or some people to open the door from Monday to Friday, from when to when, and not to open at other times.

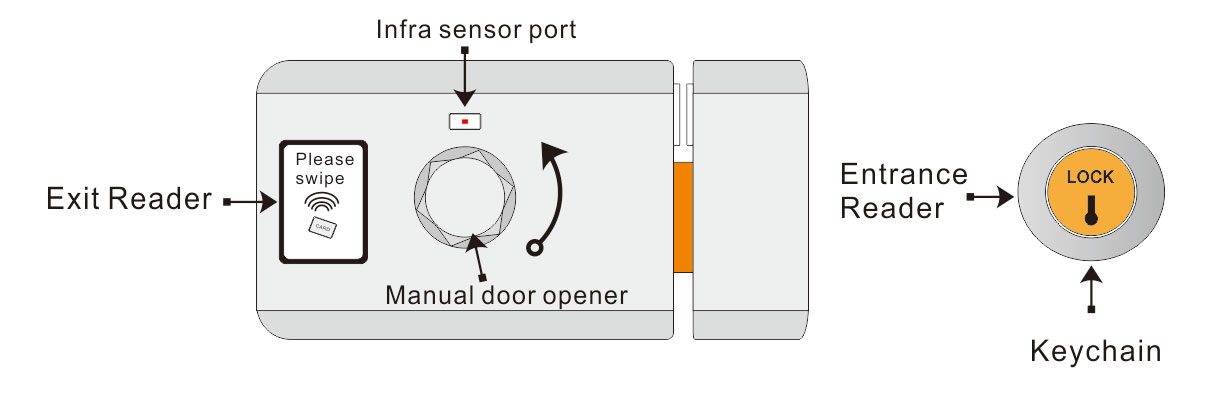

Appearance:

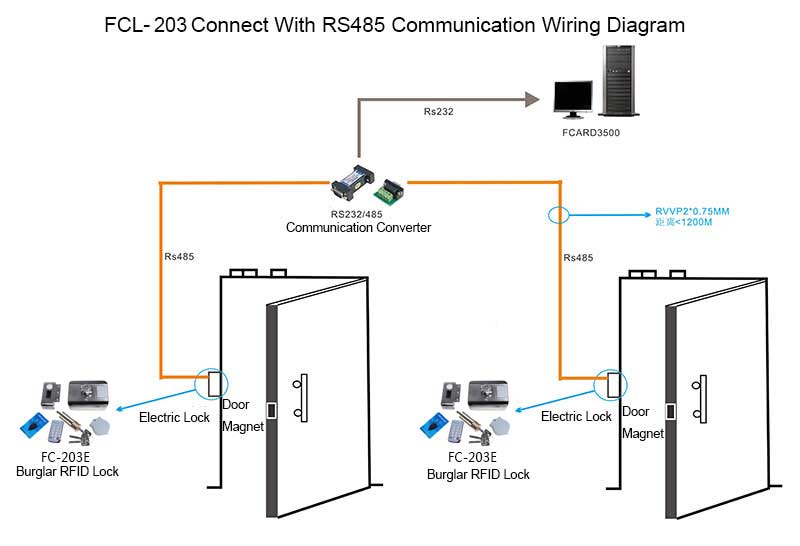

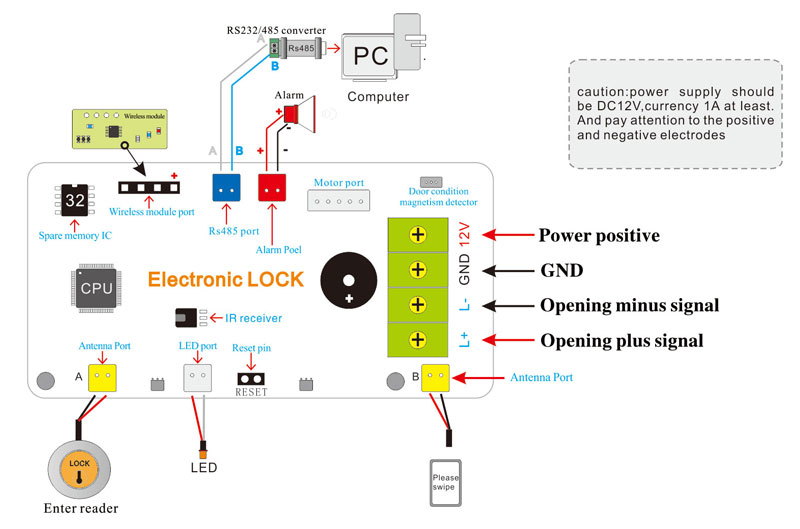

Wiring Diagram:

Caution: the welding is prohibited in this lock!!!

Function Introduction:

Support key, card, wireless controller and software to open door.

Can setting door timeout prompt.

Support input card number to issue card, read card to issue card, input serial number to issue card, master card to issue card etc.

Support the latest time access level management function

Build in building intercom interface, can connected with all brand’s building intercom machine.

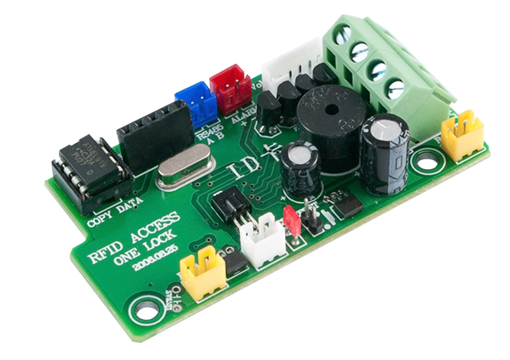

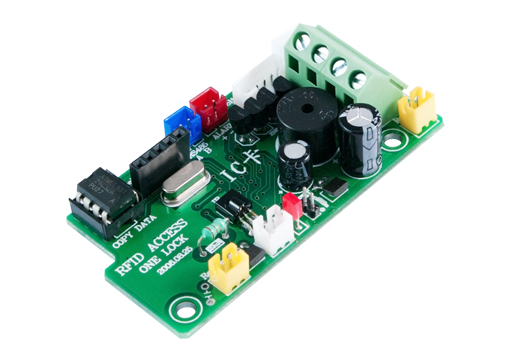

Accessories:

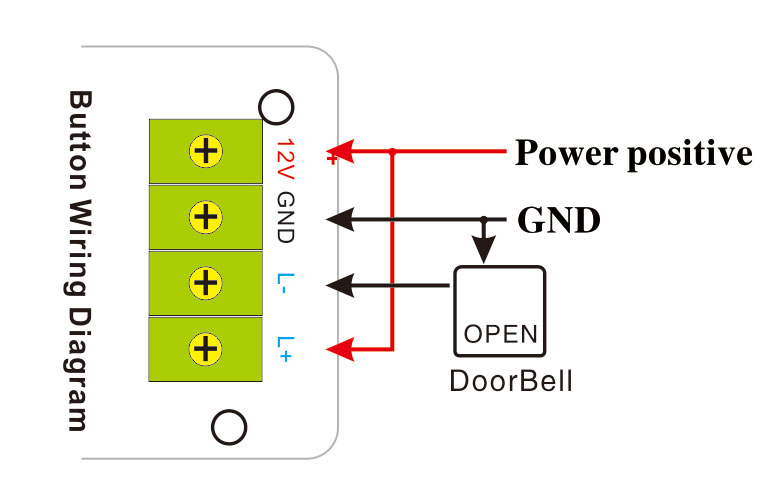

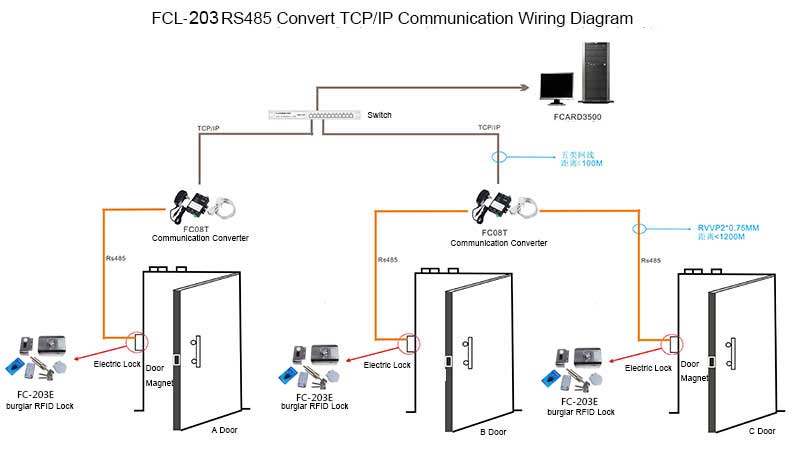

Wiring Diagram:

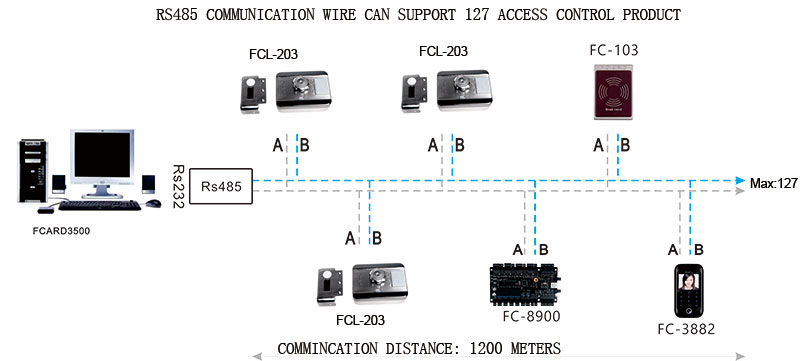

Network Struction Diagram:

Compatible with FCARD one card pass management system, support: unified management of access control, offline access control, time attendance access controller, guard tour, consumption machine, water controller, elevator access control board, parking lot system, etc., realizing a real one card pass system with one card and one library.
